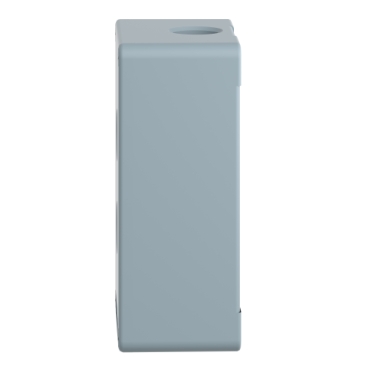

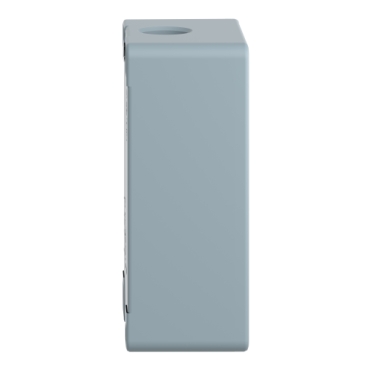

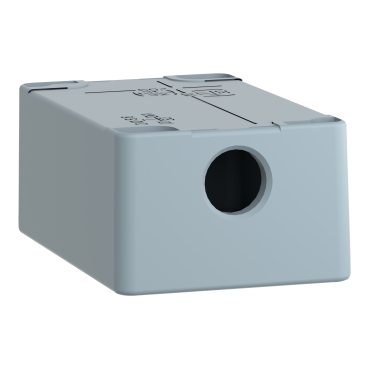

die-cast empty control station - XAPM - Ø22 - zinc alloy - 2 horizontal openings

Mfr. Part No.:

XAPM2202

APT Stock No.:

SE-XAPM2202

Brand:

Schneider Electric

Back Order

Subtotal (1 unit)**

GHS 35.36

(Exc. VAT)

GHS 43.10

(Inc. VAT)

Available For Back Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Description

This Harmony XAPM die-cast empty control station has 2 cut-out for 2 push buttons / 2 functions for controlling of operation in machines. This 2 cut-out blue empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony 22mm range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP69 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all 22 mm push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Main
Range of product
Harmony XAP
Product or component type
Die-cast empty control station
Device short name
XAPM
Product destination
For Ø 22 mm control and signalling units
Product front plate size
80 x 130 mm
Usable depth
49 mm
Number of cut-out
2 cut-outs
Colour of base of enclosure
Blue
Colour of cover
Blue
Material
Zinc alloy
Cable entry
1 hole with blanking plug for cable gland, clamping capacity: 14 mm
1 hole without blanking plug for cable gland, clamping capacity: 14 mm
Device mounting
Flush
IP degree of protection
IP65 conforming to IEC 60529
IP69 conforming to NF C 20-010
IP69K
Complementary
Number of vertical rows
1
Net weight
0.61 kg

Dimensions Drawings

Dimensions and Fixing


(1)
1 hole, without blanking plug, for cable gland with 14 mm/0.55 in. maximum clamping capacity
(2)
1 hole, with blanking plug (protrusion 6 mm/0.23 in.), for cable gland with 14 mm/0.55 in. maximum clamping capacity
(3)
2 x Ø 5.6 mm/0.22 in. holes, depth 20 mm/0.78 in.
P
Usable depth

a

b

c

G

H

P

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

mm

in.

80

3.15

130

5.12

51.5

2.03

50

1.97

115

4.53

49

1.93

Refer to the product characteristics to get the number of cut-outs.

Cut-out interaxis dimensions


b1
Vertical interaxis: 40 mm/1.57 in.
