Name: XB4BT845 - Red Ø40 Emg. Stop - latching push pull 1NC+1NO | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-XB4BT845
Price: 543.75 GHS
Availability: InStock
Rating: 4.3 (30 reviews)

View allHarmony Xb4

Red Ø40 Emg. Stop - latching push pull 1NC+1NO

Mfr. Part No.:

XB4BT845

APT Stock No.:

SE-XB4BT845

Brand:

SCHNEIDER ELECTRIC

Currently Unavailable – Back Order Required

Subtotal (1 unit)**

GHS 543.75

(Exc. VAT)

GHS 652.50

(Inc. VAT)

Available For Back Order

Out of stock? No worries! You can back order this product.
To request a back order:

Tap the Request Back Order button below
Fill out the form with your Name, Email, Phone, and Company

Our team will review your request and contact you with availability and lead time.

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Wide modular range to suit machines and operator safety.

Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery.

Ergonomic design for emergency actuation in several environments

Large set of accessories : circular legends, illuminated legend rings for harsh environments.

Wide range of operating temperature from -40 to +70 °C/-40 to +158 °F

Description

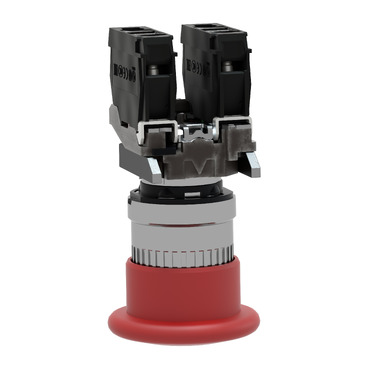

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched push-pull mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Accessories (1)

Spare parts (3)

Specifications

Main
Range of product	Harmony XB4
Product or component type	Emergency stop push-button Emergency switching off push-button
Device short name	XB4
Bezel material	Chromium plated metal
Fixing collar material	Zamak
Mounting diameter	22.5 mm
Sale per indivisible quantity	1
Shape of signaling unit head	Round
Type of operator	trigger action and mechanical latching
Reset	Push-pull
Operator profile	Red mushroom Ø 40 mm, unmarked
Contact operation	Slow-break
Connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Complementary
Height	47 mm
Width	40 mm
Depth	82 mm

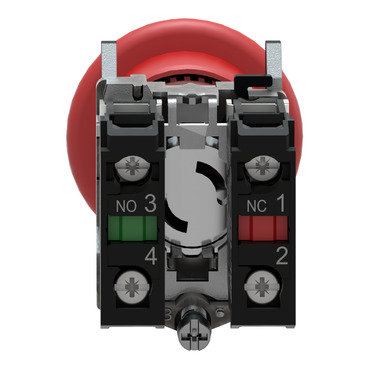

Terminals description ISO n°1	(13-14)NO
Net weight	0.136 kg
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
