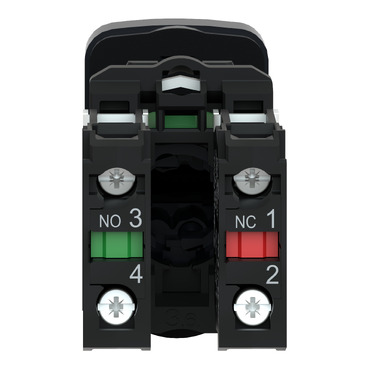

schneider-electric xb5al73415 Picture
schneider-electric logo

Double-headed push button, plastic, Ø22, 1 green flush marked I + 1 red projecting marked O, 1 NO + 1 NC

Mfr. Part No.:

XB5AL73415

APT Stock No.:

SE-XB5AL73415

Brand:

Schneider Electric

Cap/operator or lens colour:

Back Order

Subtotal (1 unit)**

GHS 281.52

(Exc. VAT)

GHS 343.17

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Quick and easy assembly and disassembly

Robustness to withstand harsh environments

With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board

A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Excellent mechanical connection with operator head

Description

This Harmony XB5, double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Compatible products

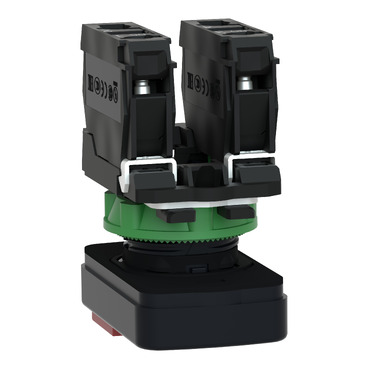

schneider-electric xb5al73415 Picture

Spare parts (1)

Specifications

Main
Range of product
Harmony XB5
Product or component type
Double-headed push-button
Device short name
XB5
Bezel material
Dark grey plastic
Fixing collar material
Plastic
Head type
Standard
Mounting diameter
22.5 mm
Shape of signaling unit head
Rectangular
Type of operator
spring return
Operator profile
1 flush - 1 projecting push-buttons
Operators description
Green ''I'' - red ''O''
Contacts type and composition
1 NO + 1 NC
Contact operation
Slow-break
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Spring terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Spring terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Device presentation
Complete product
Complementary
Height
50 mm
Width
30 mm
Depth
59 mm
Terminals description ISO n°1
(21-22)NC
(13-14)NO
Net weight
0.053 kg
Resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
