Name: XB5AW73731M5 - Green flush/red projecting illum Ø22 1NO+1NC 240V | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-XB5AW73731M5
Price: 319.05 GHS
Availability: InStock
Rating: 4.3 (41 reviews)

View allHarmony Xb5

Green flush/red projecting illum Ø22 1NO+1NC 240V

Mfr. Part No.:

XB5AW73731M5

APT Stock No.:

SE-XB5AW73731M5

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 319.05

(Exc. VAT)

GHS 382.86

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Quick and easy assembly and disassembly

Robustness to withstand harsh environments

With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board

A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Excellent mechanical connection with operator head

Description

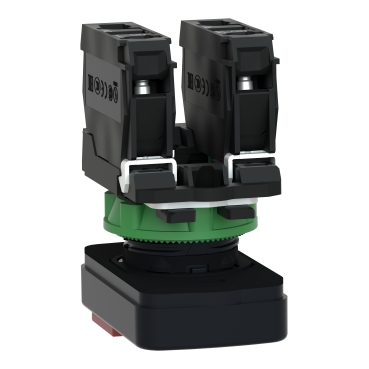

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Spare parts (1)

Specifications

Main
Range of product	Harmony XB5
Product or component type	Illuminated double-headed push-button
Device short name	XB5
Bezel material	Dark grey plastic
Fixing collar material	Plastic
Head type	Standard
Mounting diameter	22 mm
Shape of signaling unit head	Rectangular
Type of operator	spring return
Operator profile	Green flush, I (white) Red projecting, O (white)
Contacts type and composition	1 NO + 1 NC
Contact operation	Slow-break
Connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 Spring terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Spring terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Light source	Protected LED
Bulb base	Integral LED
[Us] rated supply voltage	230...240 V AC 50/60 Hz

Complementary
Height	50 mm
Width	30 mm
Depth	59 mm
Terminals description ISO n°1	(13-14)NO (11-12)NC
Net weight	0.066 kg
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
