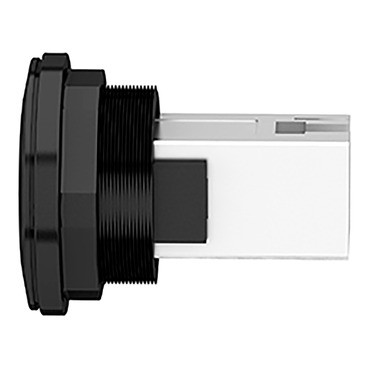

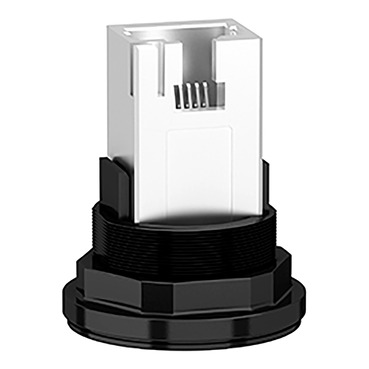

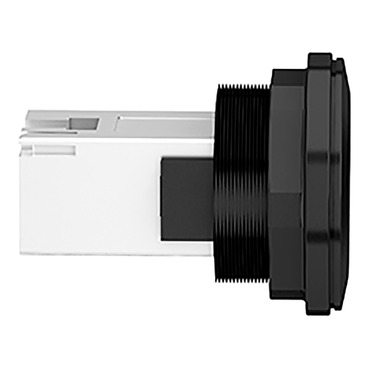

Panel mounted RJ45 port, plastic, Ø22, for ethernet interface, RJ45 jack

Mfr. Part No.:

XB5PRJ45

APT Stock No.:

SE-XB5PRJ45

Brand:

Schneider Electric

Back Order

Subtotal (1 unit)**

GHS 528.36

(Exc. VAT)

GHS 644.07

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Quick and easy assembly and disassembly

Robustness to withstand harsh environments

With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board

A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Excellent mechanical connection with operator head

Description

This Harmony XB5, panel mounted RJ45 port enables connection to your machine of various devices. This panel mounted RJ45 communication port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet door. It is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet.

Compatible products

schneider-electric xb5prj45 Picture

Accessories (1)

Specifications

Main
Range of product
Harmony XB5
Product or component type
Panel mounted RJ45 port
Device short name
XB5P
Complementary
Sale per indivisible quantity
1
Mounting diameter
22 mm
Thickness
6 mm without protection cover
1.5…5 mm with protection cover plastic
1.5…5 mm with protection cover rigid plastic
1.5…2.5 mm with protection cover metal
Bezel material
Plastic
Fixing collar material
Plastic
Integrated connection type
RJ45 Ethernet 10 Gbit/s
