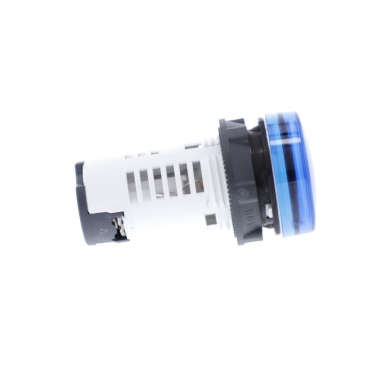

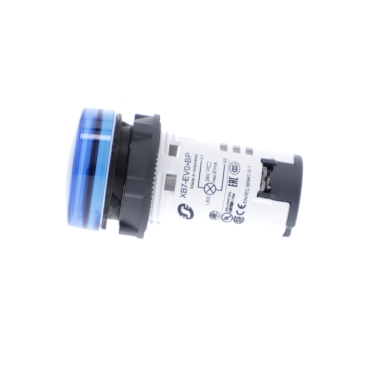

Name: XB7EV06MP - Monolithic pilot light, plastic, blue, Ø22, integral LED, 230…240 V AC | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-XB7EV06MP
Price: 121.20 GHS
Availability: InStock
Rating: 4.7 (6 reviews)

View allHarmony Xb7

Monolithic pilot light, plastic, blue, Ø22, integral LED, 230…240 V AC

Mfr. Part No.:

XB7EV06MP

APT Stock No.:

SE-XB7EV06MP

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 121.20

(Exc. VAT)

GHS 147.74

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Finger safe screw clamp terminals

High chemical resistance

Modern design;reinforced with flush mounting kit

High brightness of the LED illuminated functions

Simple to choose

Description

This Harmony XB7, plain lens monolithic blue pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Accessories (1)

Specifications

Main
Range of product	Harmony XB7
Product or component type	Pilot light
Device short name	XB7
Mounting diameter	22 mm
Sale per indivisible quantity	10
Shape of signaling unit head	Round
Cap/operator or lens colour	Blue
Light source	LED
Bulb base	Integral LED
[Us] rated supply voltage	230...240 V AC 50/60 Hz
Device presentation	Monolithic product

Complementary
Height	29 mm
Width	29 mm
Depth	54 mm
Terminals description ISO n°1	(X1-X2)PL
Net weight	0.02 kg
Device mounting	Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1

Dimensions Drawings

Pilot Light with Screw Terminal

Dimensions

Support panel thickness: 1 to 6 mm/0.4 to 0.24 in. (metal), 2 to 6 mm/0.8 to 0.24 in. (plastic).

Mounting and Clearance

Mounting

Diameter of Finished Fixing Holes

(1)

Minimum value.

(2)

40 mm/1.58 in. for Emergency switching off pushbutton only.

(3)

Standard value: Ø 22.3 (0; + 0.4) mm/Ø 0.88 (0; + 0.02) in.

Faston Clip Connection

"U" Type Tag Connection

(1)

6.5 mm/0.26 in. recommended, 7 mm/0.28 in. max.

(2)

M3 screw clamp terminal.

Connections and Schema

Wiring Diagram

(1)

LED
