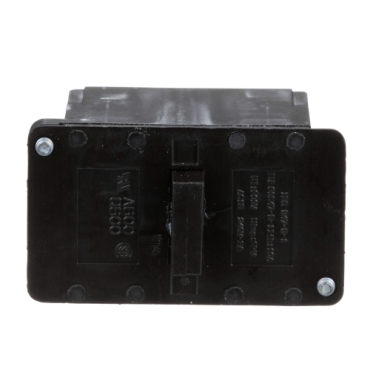

spring return contact block - 1 NC + 2 NO - front mounting
Mfr. Part No.:
XENG1191
APT Stock No.:
SE-XENG1191
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 241.57
(Exc. VAT)
GHS 294.47
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Less maintenance and damage to installation due to 1 million cycle high endurance
Clear labelling of the contact wiring and terminals names on the side of the block
Clear color scheme for NO and NC contact block types
Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Description
This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XAC |
| Product or component type | Contact block |
| Component name | XENG |
| Electrical circuit type | Control circuit |
| Contact block application | 2-speed |
| Contact block type | Single |
| Type of operator | Spring return |
| Product compatibility | XACA XACA9...head |
| Contacts type and composition | 1 NC + 2 NO |
| Mounting of block | Front mounting |
| Contact operation | Slow-break Staggered |
| Complementary | |
|---|---|
| Connections - terminals | Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Mechanical durability | 1000000 cycles |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
