Electronic pressure sensors, Pressure sensors XM, transmitter 6 bar, 4...20 mA, G1/4 A male, FPM, M12
Mfr. Part No.:
XMLP006GD21F
APT Stock No.:
SE-XMLP006GD21F
Brand:
Telemecanique
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,955.00
(Exc. VAT)
GHS 2,383.15
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Telemecanique Pressure sensors XM |
| Product or component type | Electronic pressure sensors |
| Pressure sensor type | Pressure transmitter |
| Pressure sensor name | XMLP |
| Electrical circuit type | Control circuit |
| Local display | Without |
| Controlled fluid | Fresh water (0-125 °C),
air (-15-125 °C),
gas (-15-125 °C),
hydraulic oil (-15-125 °C) |
| Fluid connection type | G 1/4A (male) conforming to DIN 3852-E |
| Electrical connection | 1 male connector M12 4 pins |
| [Us] rated supply voltage | 12...24 V DC SELV (voltage limits: 7-33 V) |
| Current consumption | < 23 mA |
| Type of output signal | Analogue |
| Analogue output function | 4...20 mA, 2-wire |
| Quantity per set | Set of 1 |
| Type of packing | Individual |
| Complementary | |
|---|---|
| Materials in contact with fluid | Stainless steel AISI 316L |
| Operating position | Any position |
| Protection type | Reverse polarity |
| Electromagnetic compatibility | Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz,
radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz,
electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact,
1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm,
immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz,
electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV |
| Response time on output | <= 2 ms 10...90 % of full scale |
| Measurement accuracy | +/- 0,5 % de la plage de mesure |

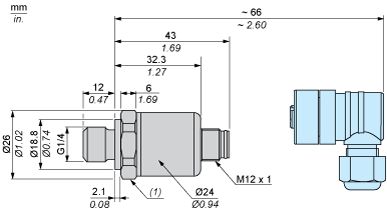

Dimensions Drawings
Dimensions
- (1) SW24 tightening torque ≤ 25 N.m / 221 lb-in
Connections and Schema
Connection and Schema
Wiring Diagram
- (a) I out
2-Wire Technique (4-20 mA)

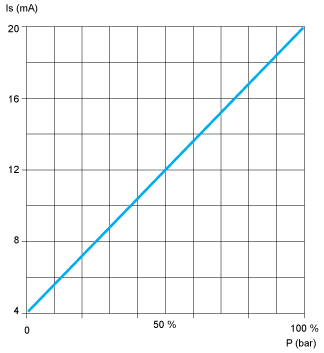

Performance Curves
Performance Curves
Curves
