Inductive sensor XS1 M18, L50mm, brass, Sn8mm, 12..24VDC, M12
Mfr. Part No.:
XS118B3PAM12
APT Stock No.:
SE-XS118B3PAM12
Brand:
Telemecanique
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 560.15
(Exc. VAT)
GHS 682.82
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Device application | Mobile equipment |
| Sensor design | Cylindrical M18 |
| Size | 50 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Flush mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP65 conforming to IEC 60529,
IP67 conforming to IEC 60529 |
| Complementary | |
|---|---|
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M18 x 1 |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Status LED | Output state: 1 LED (yellow) |

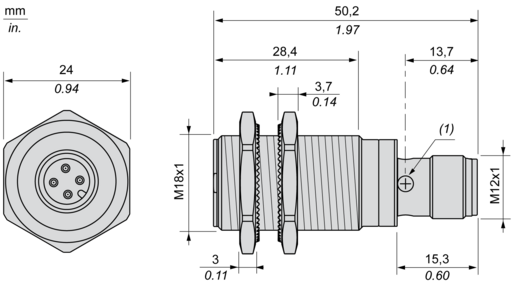

Dimensions Drawings
Dimensions
(1) :
Mounting and Clearance
Minimum Mounting Distances
Side by side
e (1) ≥
Face to face
e (2) ≥
Facing a metal object
e (3) ≥
Connections and Schema
Wiring Schemes
M12 connector
PNP
