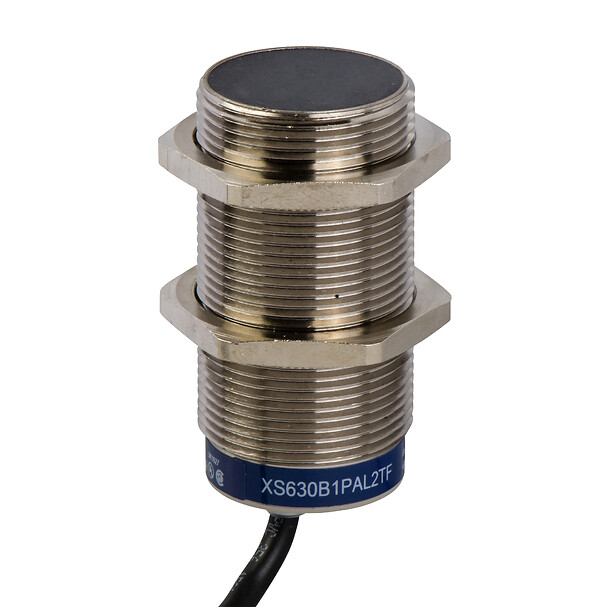

Inductive proximity sensors XS, inductive sensor XS6 M30, L62mm, brass, Sn15mm, 12...48 VDC, cable 2 m
Mfr. Part No.:
XS630B1PAL2
APT Stock No.:
SE-XS630B1PAL2
Brand:
Telemecanique
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,054.69
(Exc. VAT)
GHS 1,285.67
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Device application | Mobile equipment |
| Sensor design | Cylindrical M30 |
| Size | 62 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Flush mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529,
IP69K conforming to DIN 40050 |
| Complementary | |
|---|---|
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | PPS |
| Sensing range | 8...15 mm |
| Differential travel | 1...15 % of Sr |

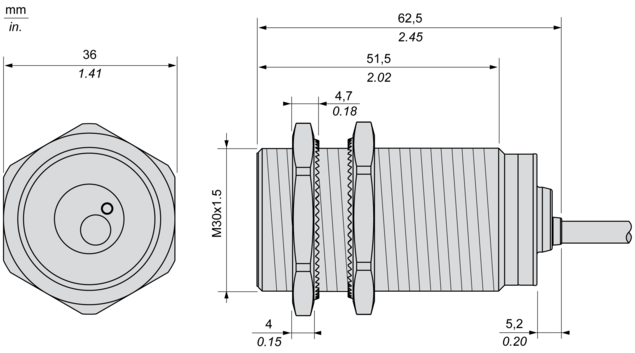

Dimensions Drawings
Dimensions
Mounting and Clearance
Minimum Mounting Distances
Side by side
e (1) ≥
Face to face
e (2) ≥
Facing a metal object
e (3) ≥
Connections and Schema
Wiring Schemes
PNP
BU :
BN :
BK :
