Inductive proximity sensors XS, Rotation monitoring, M30, Sn10mm, 6...150c/mn, 24...240VAC/DC, cable 2 m
Mfr. Part No.:
XSAV11801
APT Stock No.:
SE-XSAV11801
Brand:
Telemecanique
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 1,583.65
(Exc. VAT)
GHS 1,930.47
(Inc. VAT)
Available For Back Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Product or component type | Sensor |
| Sensor type | Inductive proximity sensor |
| Sensor name | XSA |
| Device application | Rotation monitoring |
| Sensor design | Cylindrical M30 |
| Size | 81 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24...210 V DC,
24...240 V AC 50/60 Hz |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5...200 mA DC,
5...350 mA AC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Complementary | |
|---|---|
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | PPS |
| Sensing range | 8...15 mm |
| Differential travel | 3...15% of Fr |

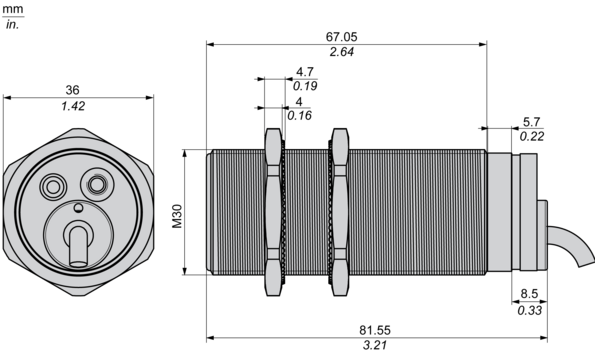

Dimensions Drawings
Dimensions
(1)
Mounting and Clearance
Minimum Mounting Distances
Side by side
e (1) ≥
Face to face
e (2) ≥
Facing a metal object
e (3) ≥
Connections and Schema
Wiring Schemes
2-wire AC or DC
BU :
BN :

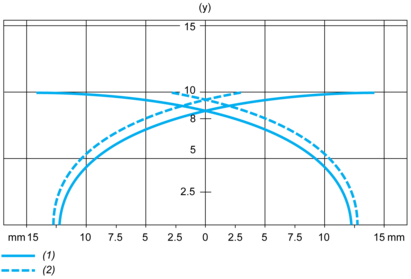

Performance Curves
Performance Curves
Standard Steel Target : 30x30x1 mm
(1)
(2)
(y)
