Harmony XVB, Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70... 90 dB, 12...48 V AC/DC
Mfr. Part No.:
XVBC9B
APT Stock No.:
SE-XVBC9B
Brand:
Schneider Electric
Currently Unavailable – Back Order Required
Available For Back Order
Out of stock? No worries! You can back order this product.
To request a back order:
- Tap the Request Back Order button below
- Fill out the form with your Name, Email, Phone, and Company
Our team will review your request and contact you with availability and lead time.
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
3 types of light source: 10 Watt incandescent bulb, built-in high-efficiency LEDs, 5 and 10-joule discharge tube
Fully flexible and interchangeable construction of up to 5 lens units (six colors of light lens unit)
Connector with removable base, axial, or side cable entry, immediate assembly, and fixing using a locking ring
100,000 hours of maintenance-free lighting thanks to LED Protected technology
High degree of protection(IP66) and Shock resistence(lK05)
Description
This Harmony XVB audible buzzer unit is supplied with 12V to 48V AC/DC. This indicating bank buzzer is an accessory designed as an audible and signalling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. 90 dB loud buzzer allows for clear alerting on critical machine statuses even from long distance. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XVB Universal |
| Product or component type | Indicator bank |
| Beacon or indicator bank unit type | Audible unit |
| Mounting diameter | 70 mm |
| Component name | XVBC |
| Noise level | 70…90 dB at 1 m |
| [Us] rated supply voltage | 12...48 V AC/DC |
| Complementary | |
|---|---|
| Signalling type | Continuous or intermittent buzzer |
| Assembly style | Customer assembly, up to 5 units |
| Connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption | < 15 mA |

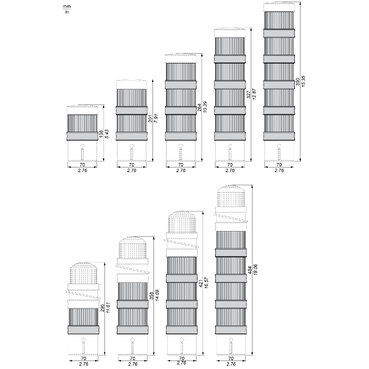

Dimensions Drawings
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order to get b dimension.
Number of illuminated or audible signalling units (no "flash") | b in mm | b in in. |
|---|---|---|
1 | 138 | 5.43 |
2 | 201 | 7.91 |
3 | 264 | 10.39 |
4 | 327 | 12.87 |
5 | 390 | 15.35 |
,
Below drawing shows the minimum configuration of the product. Select the number of stages according to the product characteristics in order to get b dimension.
Number of illuminated or audible signalling units other than "flash" tube | b in mm | b in in. |
|---|---|---|
1 | 295 | 11.61 |
2 | 358 | 14.09 |
3 | 421 | 16.57 |
4 | 484 | 19.06 |
Technical Description
By means of 4 microswitches located in the base of the buzzer:
2 switches marked 1 and 2 for selecting continuous or intermittent mode (Hz).
2 switches marked 3 and 4 for selecting the power (dB) of the audible signal.
Position of microswitches | Setting | |
|---|---|---|
1 | 2 | Mode |
1 | 1 | continuous: 2.8 kHz |
1 | 0 | continuous: 2.8 kHz |
0 | 1 | intermittent: 5 Hz |
0 | 0 | intermittent: 1 Hz |
Position of microswitches | Setting | |
|---|---|---|
3 | 4 | Power |
1 | 1 | 90 dB |
0 | 1 | 85 dB |
1 | 0 | 80 dB |
0 | 0 | 70 dB |
