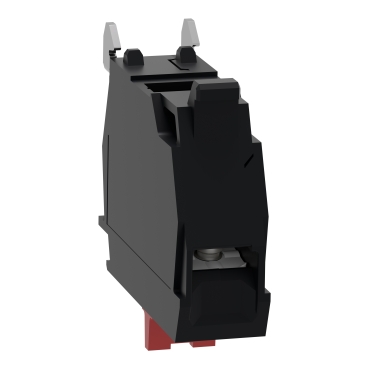

single contact block for head Ø22 1NC screw clamp terminal
Mfr. Part No.:
ZENL1121
APT Stock No.:
SE-ZENL1121
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 51.68
(Exc. VAT)
GHS 63.00
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Less maintenance and damage to installation due to 1 million cycle high endurance
Clear labelling of the contact wiring and terminals names on the side of the block
Clear color scheme for NO and NC contact block types
Wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product
Description
This Harmony XAL, single contact block uses screw-clamp terminals and has 1 x NC contact. It is compatible with Harmony XB5 control and signaling units and XAPS control stations. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches and XAPS control station and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. 1 million cycle high endurance allows less maintenance and damage in your installation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony XAPS Harmony XAL |
| Product or component type | Contact block |
| Device short name | ZENL |
| Product destination | For XAPS control station For XB5 Ø 22 mm control and signalling units |
| Mounting of block | Rear mounting |
| Sale per indivisible quantity | 5 |
| Contacts type and composition | 1 NC |
| Complementary | |
|---|---|
| Assembly style | For customer assembly |
| Net weight | 0.015 kg |
| Contact operation | Slow-break |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Operating travel | 1.5 mm (NC changing electrical state) 4.3 mm (total travel) |
| Operating force | 2 N NC changing electrical state |
