Name: A9MEM3250 - iEM3250 energy meter - CT - Modbus | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-A9MEM3250
Price: 2054.25 GHS
Availability: InStock
Rating: 4.3 (26 reviews)

View allActi9 Iem3000 Energy Meters

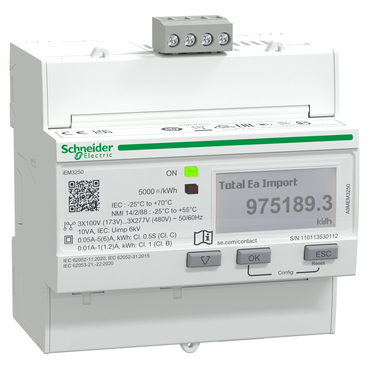

iEM3250 energy meter - CT - Modbus

Mfr. Part No.:

A9MEM3250

APT Stock No.:

SE-A9MEM3250

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 2,054.25

(Exc. VAT)

GHS 2,504.13

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Feature-rich power and energy meters

Simple energy monitoring compatible with Building management systems

Improve performance, safety and reliability

Modbus 485 communication port for remote monitoring

Identify energy savings opportunties with precision accuracy of Class 0.5S

Description

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, and per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. No secondary communication ports. Certifications include EAC, CE and UL. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Compatible products

Transformers (11)

Specifications

Main
Range	Acti9
range of product	Acti9 iEM3000
Device short name	iEM3250
Product or component type	Energy meter

Complementary
Poles description	3P 3P + N 1P + N
Type of measurement	Active energy Current Voltage Active power
Device application	Sub billing Partial meter
Accuracy class	Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 61557-12 Class C active energy conforming to EN 50470-3
input type	Current transformer 1 A or 5 A
[In] rated current	5 A 1 A
