Name: RXM4AB2FD - Miniature plug-in relay, 6 A, 4 CO, LED, 110 V DC | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-RXM4AB2FD
Price: 92.85 GHS
Availability: InStock
Rating: 4.3 (33 reviews)

View allHarmony Electromechanical Relays

Miniature plug-in relay, 6 A, 4 CO, LED, 110 V DC

Mfr. Part No.:

RXM4AB2FD

APT Stock No.:

SE-RXM4AB2FD

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 92.85

(Exc. VAT)

GHS 113.18

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Fit to customer needs, coverage of most general control panel applications

Easy to select, simple selection and wide availability

Convenient to use, easy status readiness trough mechanical indicator & LED; one-step lockable test button

Safe to perform, product reliability, compliance with industrial standard and eco-design

Flexibile options of sockets and accessories

Description

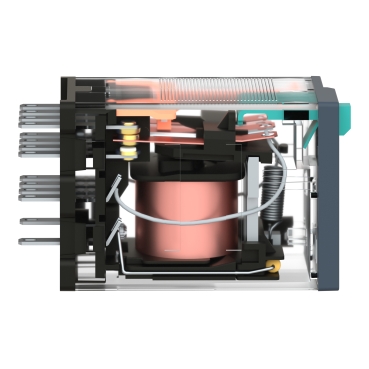

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 110 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. Product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
