Name: BMXDAI1615H - Discrete input module X80 16in- 200_240VAC- Severe | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-BMXDAI1615H
Price: 10648.95 GHS
Availability: InStock
Rating: 4.5 (22 reviews)

View allModicon X80 Ios

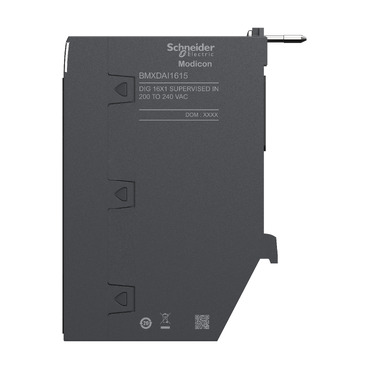

Discrete input module X80 16in- 200_240VAC- Severe

Mfr. Part No.:

BMXDAI1615H

APT Stock No.:

SE-BMXDAI1615H

Brand:

SCHNEIDER ELECTRIC

Currently Unavailable – Back Order Required

Subtotal (1 unit)**

GHS 10,648.95

(Exc. VAT)

GHS 12,778.74

(Inc. VAT)

Available For Back Order

Out of stock? No worries! You can back order this product.
To request a back order:

Tap the Request Back Order button below
Fill out the form with your Name, Email, Phone, and Company

Our team will review your request and contact you with availability and lead time.

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Cost-effective modernization and migration

Reduce time to market

Process efficiency

Easy Maintenance

Reliability and robustness

Description

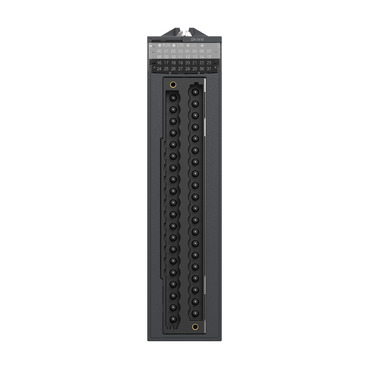

"This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580." "This product is composed of 16 input channels and it is supplied with 200 to 240V AC." "This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C/-13°F to 158°F." "Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs." "This product is IP20 rated and offers 565019 hours of MTBF." "This discrete module has a weight of 0.156kg and dimensions of 32x131x86mm." "This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation." "This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 1 standards." "This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 40-way caged or spring-type removable terminal block." "The product must be installed on the rack and fixed with 2 screws."

Documents
