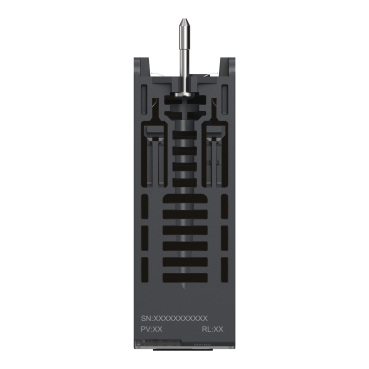

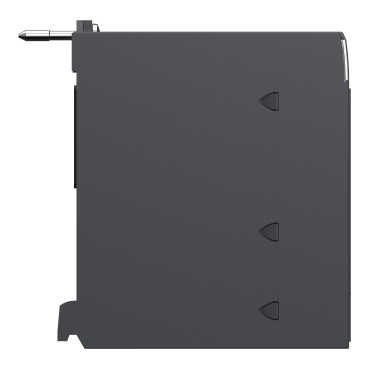

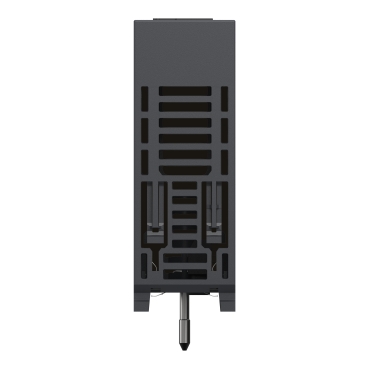

discrete input module X80 - 16 inputs - 24 V DC positive
Mfr. Part No.:
BMXDDI1602
APT Stock No.:
SE-BMXDDI1602
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,858.36
(Exc. VAT)
GHS 3,484.34
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Cost-effective modernization and migration
Reduce time to market
Process efficiency
Easy Maintenance
Reliability and robustness
Description
This discrete input module is part of the Modicon X80 modules. It has 16 isolated inputs and it is supplied with 24V DC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (2)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Discrete input module |
| Discrete input number | 16 |
| Discrete input type | Isolated |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 3.5 mA |
| Complementary | |
|---|---|
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6800 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
Dimensions Drawings
(1) With removable terminal block (cage, screw or spring).
(2) With FCN connector.
(3) On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Rack references | a in mm | a in in. |
|---|---|---|
BMXXBP0400 and BMXXBP0400H | 242.4 | 09.54 |
BMXXBP0600 and BMXXBP0600H | 307.6 | 12.11 |
BMXXBP0800 and BMXXBP0800H | 372.8 | 14.68 |
BMXXBP1200 and BMXXBP1200H | 503.2 | 19.81 |
Connections and Schema
power supply 24 VDC
fuse fast blow fuse of 0.5 A
