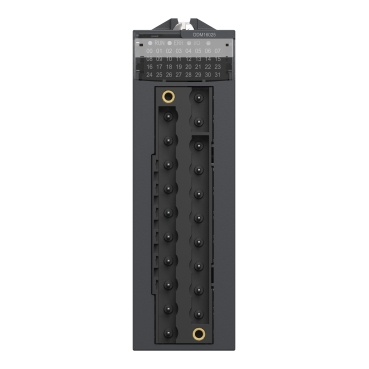

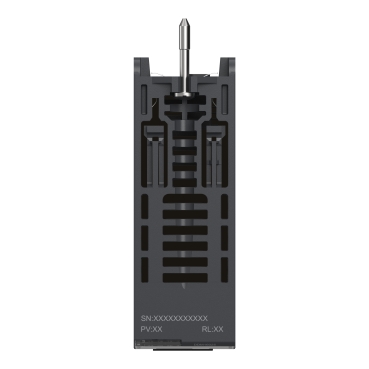

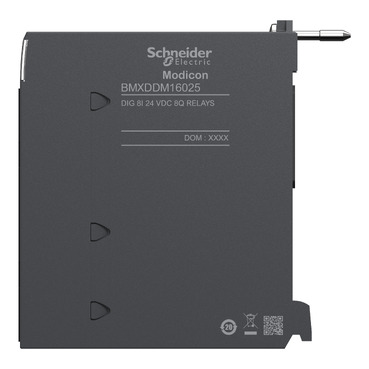

discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - relay
Mfr. Part No.:
BMXDDM16025
APT Stock No.:
SE-BMXDDM16025
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 6,390.30
(Exc. VAT)
GHS 7,789.78
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Modularity and scalability
Robustness and reliability
Common safety
IP20 protection for harshest environments
Wide range of operating temperature from 0°C to 60°C
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 relay output channels. It is a discrete I/O module with a discrete input voltage of 24V DC, an output voltage of 24V DC, 24V to 240V AC, 10V to 264V AC, an output current of 2A, a maximum power dissipation of 3.1W and current consumption of 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers 912167 hours of MTBF. It is an IP20 rated product. It weighs 0.135kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
ACCESSORIES (2)
Specifications
| Main | |
|---|---|
| Range of product | Modicon X80 |
| Product or component type | Discrete I/O module |
| Discrete input number | 8 |
| Input type | Current sink (logic positive) |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 3.5 mA |
| Discrete output number | 8 |
| Discrete output type | Relay |
| Discrete output voltage | 24 V 19...30 V DC 24...240 V 19...264 V AC |
| Discrete output current | 2000 mA |
| Complementary | |
|---|---|
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
| Sensor power supply | 19...30 V |
| Current state 1 guaranteed | >= 2 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6800 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
Dimensions Drawings
(1) With removable terminal block (cage, screw or spring).
(2) With FCN connector.
(3) On AM1 ED rail: 35 mm wide, 15 mm deep. Only possible with BMXXBP0400/0400H/0600/0600H/0800/0800H rack.
Rack references | a in mm | a in in. |
|---|---|---|
BMXXBP0400 and BMXXBP0400H | 242.4 | 09.54 |
BMXXBP0600 and BMXXBP0600H | 307.6 | 12.11 |
BMXXBP0800 and BMXXBP0800H | 372.8 | 14.68 |
BMXXBP1200 and BMXXBP1200H | 503.2 | 19.81 |
Connections and Schema
input power supply 24 VDC
output power supply 24 VDC or 24...240 VAC
input fuse 1 fast blow fuse of 0.5 A
output fuse 1 fast blow fuse of 12 A
pre-act pre-actuator
