SHEAR BEAM LOAD CELL 50KGF
Mfr. Part No.:
CB1-K050
APT Stock No.:
DCL-CB1-K050
Brand:
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,353.99
(Exc. VAT)
GHS 2,869.51
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
New strain gauge load cell for commercial scales, high accuracy, low cost.
Provides minimal displacement compared to mechanical alternatives.
Electronic output enables easy data processing and integration.
Description
Dacell is providing ultra-precision load cells and various weighting and measuring products, which can be used in various fields of industries, based on 20 years of experiences in manufacturing of weighing and measuring products and with own superior technologies.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Specifications | Accuracy | ||
|---|---|---|---|
| Rated capacity(R.C) | 150gf, 300gf, 600gf (1.470N, 2.942N, 5.884N) |
1, 2, 3kgf (9.807N, 19.61N, 29.42N) |
5, 10, 15, 30, 50kgf (49.03N, 98.07N, 147.1N, 294.2N, 490.3N) |
| Rated output(R.O) | 1.2mV/V±20% | 1mV/V±20% | 1.5mV/V±20% |
| Nonlinearity | 0.02% R.O. | ||
| Hysteresis | 0.02% R.O. | ||
| Repeatability | 0.02% R.O. | ||
| Creep | 0.03% R.O/20MIN | 0.03% R.O./20MIN | 0.02% R.O./20MIN |
| Zero balance | ±5% R.O. | ||
| Terminal resistance, input | 420±30Ω | ||
| Terminal resistance, output | 350±2Ω | ||
| Insulation resistance | 2000㏁ | ||
| Temperature range compensated | 0~+40℃ | -10~+50℃ | -10~+50℃ |
| Temperature range, safe | -10~+50℃ | ||
| Temperature effect, on zero balance | 0.03% R.O./10℃ | ||
| Temperature effect, on rated output | 0.02% LOAD/10℃ | ||
| Excitation recommended | 10V DC | ||
| Safe overload | 150% R.C. | ||
| Cable length | Φ3, 4CORE SHIELD CABLE, 1.5m | Φ5, 4CORE SHIELD CABLE, 1.5m | |
| Allowable maximum Platform size | Φ80 | 200 X 200mm | 300 X 300mm |
| Weight | 200g | 300g | 400g |
| Wiring Information | EXC+ : RED, EXC- : WHITE, SIG+ : BLACK, SIG- : GREEN | ||

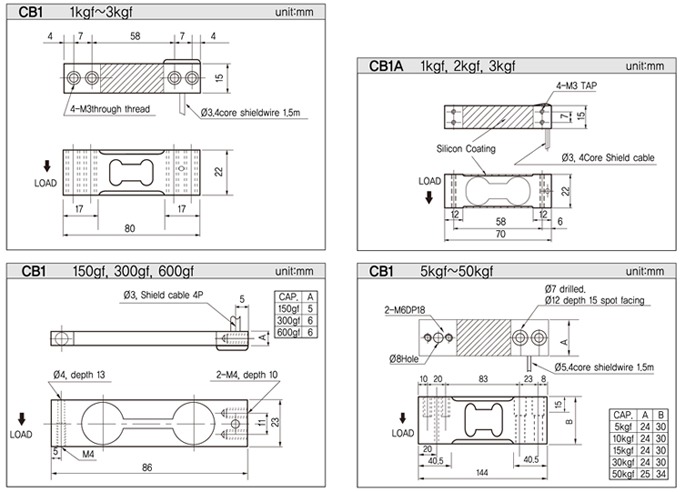

Dimensions Drawings
