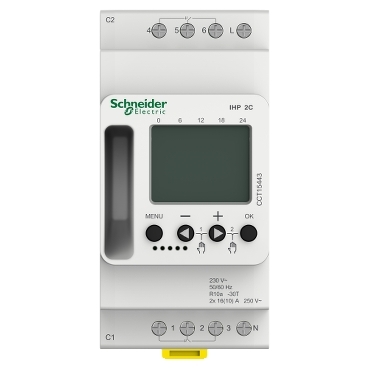

Acti9 IHP 2C w (24h/7d) programmable time switch
Mfr. Part No.:
CCT15443
APT Stock No.:
SE-CCT15443
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 2,671.59
(Exc. VAT)
GHS 3,256.67
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
IHP digital time switch Width of 45mm (5 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 2 channel output User manual holder on product left side allows to reach document easily
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| range of product | Acti9 |
| product name | Acti9 IHP |
| Device short name | IHP |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Number of channels | 2 |
| User language | English French German Dutch Italian Spanish Portuguese Danish Norwegian Swedish Finnish |
| Colour tint | White |
| Complementary | |
|---|---|
| Load type | incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2600 VA serial-compensated fluorescent tube: 2600 VA parallel compensated fluorescent lamp: 400 VA (48 µF) compact fluorescent lamp: 400 W < 2 W LED lamp: 25 W > 2 W LED lamp: 200 W |
| Maximum power consumption in W | 0.5 W standby |
| Maximum switching current | 10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| Minimum switching current | 10 mA 230 V AC 100 mA 24 V AC/DC |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| Electrical insulation class | Class II |
