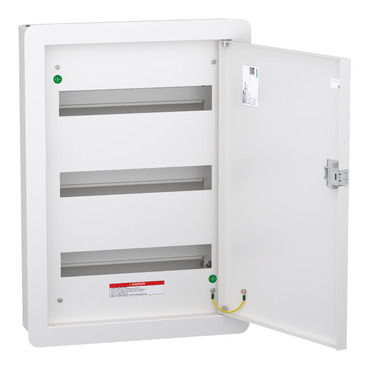

Distribution board, DBSeT, 48 ways, 100A, 3 row, flush mount
Mfr. Part No.:
DBR316MF
APT Stock No.:
SE-DBR316MF
Brand:
SCHNEIDER ELECTRIC
In Stock: available
Need additional quantities?
Contact us for estimated lead timeSubtotal (1 unit)**
GHS 1,788.00
(Exc. VAT)
GHS 2,179.57
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Experience streamlined power management with the DBSet 48 module, 3 row distribution board designed for flush mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain door. Its current rating is 100A and insulation voltage is 500V. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of the product | DBSeT |
| Product or component type | Distribution board |
| Device application | Low voltage electrical distribution |
| Number of horizontal rows | 3 |
| Provided equipment | Enclosure DIN rail Identification label |
| Complementary | |
|---|---|
| Number of 18 mm modules per row | 48 |
| [In] rated current | 100 A |
| Rated voltage | 240…415 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 500 V AC |
| Protection device options | Isolator 100 A max as incomer Miniature circuit breaker (MCB) 100 A max as incomer RCCB 100 A max as incomer Residual current circuit breaker with overcurrent protection (RCBO) 63 A max as outgoer Miniature circuit breaker (MCB) 63 A max as outgoer |
| Enclosure mounting | Flush |
