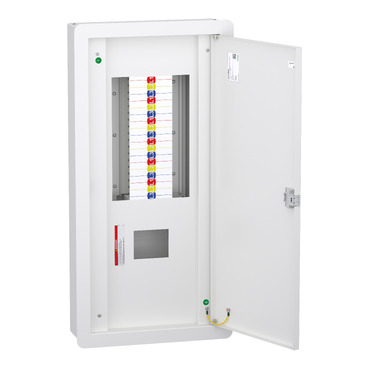

VTPN Distribution board, DBSeT, 36 module, 250A NSX incomer, IP41, Flush
Mfr. Part No.:
DBV336NSF
APT Stock No.:
SE-DBV336NSF
Brand:
SCHNEIDER ELECTRIC
Currently Unavailable – Back Order Required
Subtotal (1 unit)**
GHS 4,981.50
(Exc. VAT)
GHS 6,072.45
(Inc. VAT)
Available For Back Order
Out of stock? No worries! You can back order this product.
To request a back order:
- Tap the Request Back Order button below
- Fill out the form with your Name, Email, Phone, and Company
Our team will review your request and contact you with availability and lead time.
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Experience streamlined power management with the DBSet 36 module VTPN distribution board designed for flush mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain sheet steel door. 250A NSX incomer provision is available. Its current rating is 250A and insulation voltage is 500V. The rated short-time withstand current is 25kA for 0.3s, and the Uimp rated impulse withstand voltage is 6kV. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of the product | DBSeT |
| Product or component type | Distribution board |
| Enclosure type | Distribution enclosure |
| Device application | Low voltage electrical distribution |
| Provided equipment | pan assembly neutral bar earthing bar enclosure |
| Number of ways | 36 ways (outgoer) |
| Complementary | |
|---|---|
| [In] rated current | 250 A |
| [Icw] rated short-time withstand current | 25 kA for 0.3 s |
| [Ipk] rated peak withstand current | 52.5 kA |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Rated voltage | 220…440 V AC 50/60 Hz |
| Network number of phases | 3 phases |
