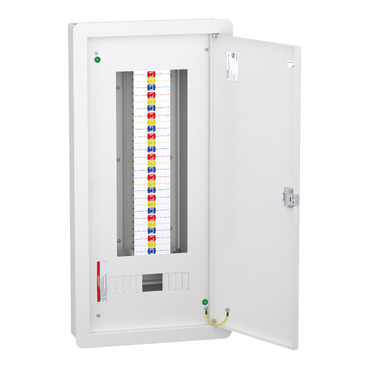

VTPN Distribution board, DBSeT, 54 module, 125A Modular incomer, IP41, Flush
Mfr. Part No.:
DBV354MF
APT Stock No.:
SE-DBV354MF
Brand:
SCHNEIDER ELECTRIC
In Stock: available
Need additional quantities?
Contact us for estimated lead timeSubtotal (1 unit)**
GHS 3,730.05
(Exc. VAT)
GHS 4,546.93
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description
Experience streamlined power management with the DBSet 54 module VTPN distribution board designed for flush mounting. The enclosure material is painted sheet steel thickness of 1.2mm. It comes with a plain sheet steel door. 125A Modular incomer provision is available. Its current rating is 125A and insulation voltage is 500V. The rated short-time withstand current is 17kA for 0.25s, and the Uimp rated impulse withstand voltage is 6kV. The color of the distribution board is white (RAL 9003). The degree of protection is IP41 and IK degree of protection is IK08. This distribution board is complies with 61439-1 and IEC 61439-3 standard.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of the product | DBSeT |
| Product or component type | Distribution board |
| Enclosure type | Distribution enclosure |
| Device application | Low voltage electrical distribution |
| Provided equipment | earthing bar pan assembly neutral bar enclosure |
| Number of ways | 54 ways (outgoer) |
| Complementary | |
|---|---|
| [In] rated current | 125 A |
| [Icw] rated short-time withstand current | 17 kA for 0.25 s |
| [Ipk] rated peak withstand current | 34 kA |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Rated voltage | 240…415 V AC 50/60 Hz |
| Network number of phases | 3 phases |
