Neutral Screwless terminal block 24 holes (3x25+21x4) + Jumper
Mfr. Part No.:
LGYT1N24
APT Stock No.:
SE-LGYT1N24
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 332.31
(Exc. VAT)
GHS 405.09
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Description

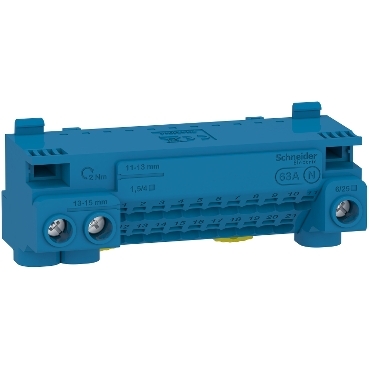

This Linergy product is a neutral terminal block with jumper. It provides 24 outgoers (3 screw connections 25mm² and 21 screwless connections 4mm²). The In rated current is up to 63A. It is intended for installation in residential and small buildings. The dimensions are (W) 94.2mm x (H) 45.5mm x (D) 40.5mm. The storage temperature is from -25°C to 60°C.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range | Linergy |
| Product or component type | Terminal block |
| Accessory / separate part category | Connection accessory |
| Range compatibility | Resi9 enclosure Pragma enclosure Kaedra enclosure |
| Colour | Blue |
| Complementary | |
|---|---|
| Provided equipment | 1.0 x jumper |
| Enclosure mounting | Flush Surface |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 440 V AC |
| Number of terminal blocks | 1 neutral (screw and screwless terminals) with 24 outgoers |
| Distribution block outgoers | 3 x 25 mm² for neutral 21 x 4 mm² for neutral |
