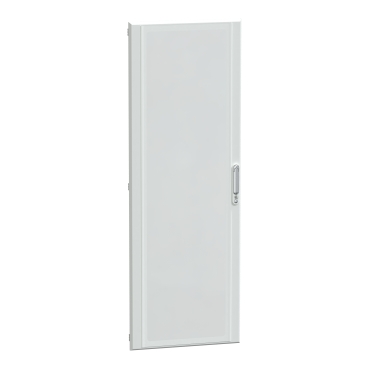

Floor standing enclosure, PrismaSeT G, W 600mm, H 1880mm (33M), IP30
Mfr. Part No.:
LVS08204
APT Stock No.:
SE-LVS08204
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 9,797.16
(Exc. VAT)
GHS 11,942.74
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
PrismaSeT G floor standing Enclosure
floor standing Enclosure W600mm
floor standing Enclosure with 33 modules
Dismountable side panels: flat wiring
Degree of protection IP30 to IP4X and IP55
Description
PrismaSeT G floor standing enclosure. Enclosure with width of 600mm. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1. Number of vertical modules 33M. Easy removable and reversible front door, opening to 130°. Color of product is White (RAL 9003). Surface finish with textured and Matt. With protective treatment of Electrophoresis treatment and hot-polymerised polyester epoxy powder.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Specifications
| Main | |
|---|---|
| Range | PrismaSeT |
| Range of product | PrismaSeT G |
| Product or component type | Enclosure |
| Device application | Low voltage electrical distribution |
| Enclosure type | Functional enclosure delivered in kit form Metal enclosure Indoor enclosure |
| Enclosure/cubicle description | Floor-standing enclosure - width 600 mm |
| Kit composition | uprights rear plate 2 side panel top plate bottom plate plinth |
| Additional information | Can be combined side by side |
| type of front plate | Without to be ordered separately |
| Number of vertical modules [50 mm] | 33 |
| Number of 18 mm modules per row | 24 |
| Standards | IEC 61439-1 IEC 61439-2 IEC 62208 |
| Product certifications | ASTA EAC |
| Complementary | |
|---|---|
| [Ui] rated insulation voltage | 1000 V on main rear busbars conforming to IEC 61439-2 |
| Network frequency | 50/60 Hz |
| [In] rated current | 630 A at 40 °C conforming to IEC 61439-2 |
| Short-circuit current | 50 kA |
| [Icw] rated short-time withstand current | 25 kA 1 s conforming to IEC 61439-1 |
| [Ipk] rated peak withstand current | 53 kA conforming to IEC 61439-1 |
