LOAD CELL S TYPE 200KG M12
Mfr. Part No.:
UU-K200
APT Stock No.:
DCL-UU-K200
Brand:
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 3,079.85
(Exc. VAT)
GHS 3,754.34
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compact size
These are extremely accurate and compact Tension/Compression load cell.
Description
Dacell is providing ultra-precision load cells and various weighting and measuring products, which can be used in various fields of industries, based on 20 years of experiences in manufacturing of weighing and measuring products and with own superior technologies.
Documents
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Specifications | Accuracy |
|---|---|
| Rated capacity (R.C.) | 2kg, 5kg, 10kgf, 20kgf,25kgf, 50kgf, 100kgf, 200kgf, 500kgf, 1tf, 2tf, 3tf, 5tf, 10tf |
| Rated output (R.O.) | 2.0mV/V±1% (2kgf, 5kgf : 1.5mV/V±1%) |
| Nonlinearity | 0.03% of R.O. |
| Hysteresis | 0.03% of R.O. |
| Repeatability | 0.03% of R.O. |
| Zero balance | ±2% of R.O. |
| Temperature effect, on rated output | 0.05% of LOAD/10℃ |
| Temperature effect, on zero balance | 0.1% of R.O./10℃ |
| Temperature range, compensated | -10~60℃ |
| Temperature range, safe | -20~80℃ |
| Terminal resistance input | 350 ±50Ω |
| Terminal resistance output | 350 ±2Ω |
| Insulation resistance bridge/case | 2000MΩ |
| Excitation recommended | 10V |
| Safe overload | 150% R.C |
| Cable length | Φ5mm 4core,3m |

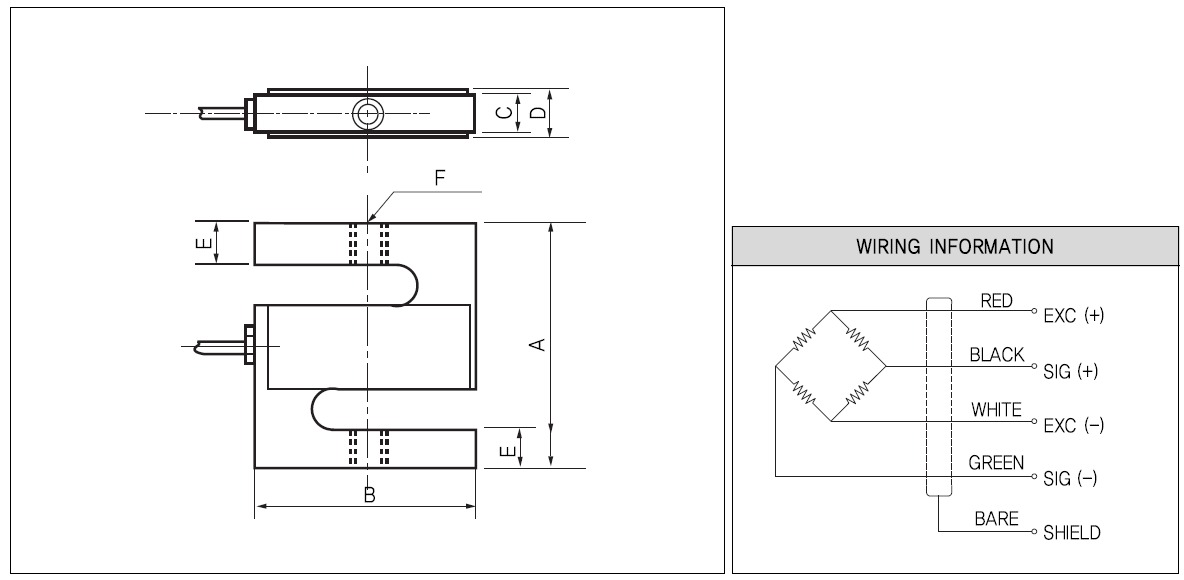

Dimensions Drawings
| Capacity | A | B | C | D | E | G | Weight(kg) |
|---|---|---|---|---|---|---|---|
| 2kgf (19.61N) | 60 | 50 | 13 | 16 | 10 | M6×1 | 0.4 |
| 5kgf (49.03N) | 60 | 50 | 13 | 16 | 10 | M6×1 | |
| 10kgf (98.07N) | 70 | 52 | 13 | 18 | 13 | M6×1 | |
| 20kgf (196.1N),25kgf (245N) | 70 | 52 | 13 | 18 | 13 | M6×1 | |
| 50kgf (490.3N) | 70 | 52 | 18 | 24 | 13 | M12×1.75 | |
| 100kgf (980.7N) | 70 | 52 | 18 | 24 | 13 | M12×1.75 | |
| 200kgf (1.961KN) | 70 | 52 | 18 | 24 | 13 | M12×1.75 | |
| 500kgf (4.903KN) | 70 | 62 | 22 | 25 | 15 | M12×1.75 | 0.8 |
| 1tf (9.807KN) | 70 | 62 | 22 | 25 | 15 | M12×1.75 | |
| 2tf (19.61KN) | 96 | 84 | 30 | 35 | 21 | M20×1.5 | 2 |
| 3tf (29.42KN) | 120 | 96 | 35 | 41 | 30 | M24×2 | 3 |
| 5tf (49.03KN) | 120 | 96 | 40 | 44 | 30 | M24×2 | |
| 10tf (98.07KN) | 165 | 140 | 60 | 66 | 46 | M39×2 | 8.5 |
