schneider-electric nsycrn65250p Picture
schneider-electric logo

Spacial CRN plain door with mount.plate. H600xW500xD250 IP66 IK10 RAL7035..

Mfr. Part No.:

NSYCRN65250P

APT Stock No.:

SE-NSYCRN65250P

Brand:

Schneider Electric

Enclosure nominal height:
200 mm250 mm300 mm400 mm500 mm600 mm700 mm800 mm1000 mm
Enclosure nominal width:
200 mm250 mm300 mm400 mm450 mm500 mm600 mm800 mm
Enclosure nominal depth:
150 mm200 mm250 mm300 mm
Door type:
GlazedPlain

Back Order

Subtotal (1 unit)**

GHS 2,435.61

(Exc. VAT)

GHS 2,969.01

(Inc. VAT)

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Momo Page imagemastercardvise

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Steel wall-mounting enclosure designed for harsh environments.

High impact resistance and excellent dust and water protection.

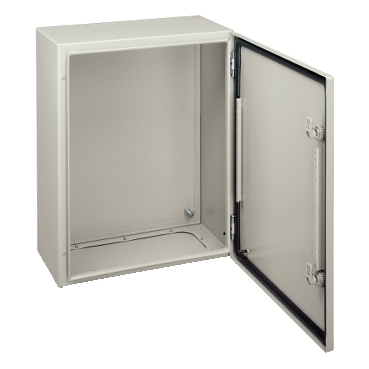

Easy equipment access with a 120° opening plain door.

Door is reversible, allowing for greater installation flexibility.

Door secured by a three-point lock with a double-bar insert.

Description

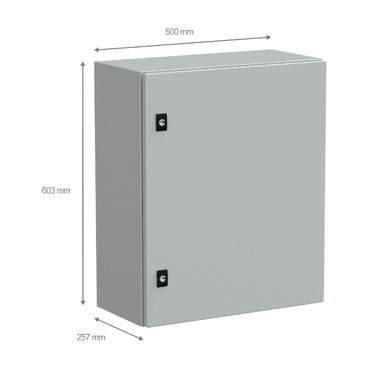

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 600 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.

Compatible products

schneider-electric nsycrn65250p Picture

ACCESSORIES (2)

Specifications

Main
Range
PanelSeT
product name
PanelSeT CRN
Application
Multi-purpose
Category
Compact enclosure
Enclosure nominal height
600 mm
Enclosure nominal width
500 mm
Enclosure nominal depth
250 mm
Installation accessory type
Wall-mounting
Device composition
1 body
1 cable gland plate
1 door with lock
1 mounting plate
Door type
Plain
Mounting plate description
Plain
Complementary
body type
Back welded with double profile forming a protected sealed area
Sides made from a single folded section
Number of doors
Front face: 1 door(s)
Door opening side
Reversible (120 °)
Lock type
3 mm double-bar lock
Type of gland plate
Standard
Accessibility for operation
Front
