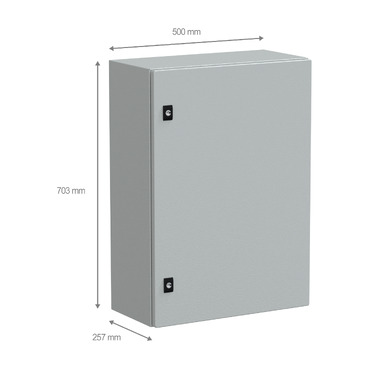

PanelSeT CRN plain door with mount.plate. H700xW500xD250 IP66 IK10 RAL7035..
Mfr. Part No.:
NSYCRN75250P
APT Stock No.:
SE-NSYCRN75250P
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeShipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Steel wall-mounting enclosure for versatile use in challenging environments.
High impact resistance to protect equipment with IK10-rated protection.
IP66-rated design offers superior dust and water resistance.
Epoxy-polyester powder finish for a sleek, durable look.
Reversible door can be opened up to 120° for easy access.
Description
The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door with lock, mounting plate. The compact enclosure is made of galvanized steel (body), steel (door), making it durable and resistant. It has IP66 and IK10 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 700 mm x (D) 250 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is plain, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is c.UL certified.
Shipping & Policy
Payment Methods:

Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products

Accessories (2)
Specifications
Main | |
---|---|
Range | PanelSeT |
product name | PanelSeT CRN |
Application | Multi-purpose |
Category | Compact enclosure |
Enclosure nominal height | 700 mm |
Enclosure nominal width | 500 mm |
Enclosure nominal depth | 250 mm |
Installation accessory type | Wall-mounting |
Device composition | 1 body 1 cable gland plate 1 door with lock 1 mounting plate |
Door type | Plain |
Mounting plate description | Plain |
Complementary | |
---|---|
body type | Back welded with double profile forming a protected sealed area Sides made from a single folded section |
Number of doors | Front face: 1 door(s) |
Door opening side | Reversible (120 °) |
Lock type | 3 mm double-bar lock |
Type of gland plate | Standard |
Accessibility for operation | Front |
