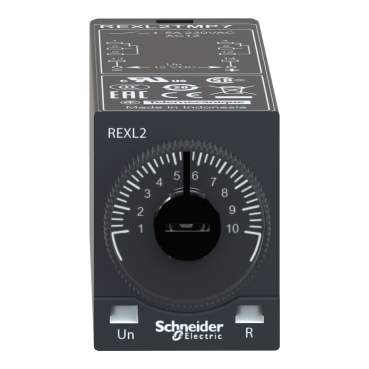

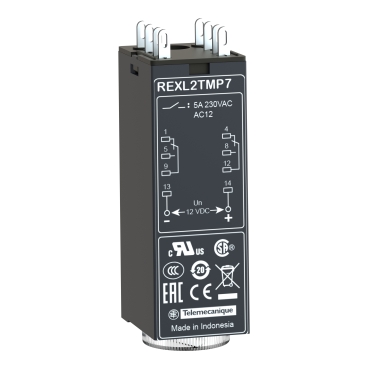

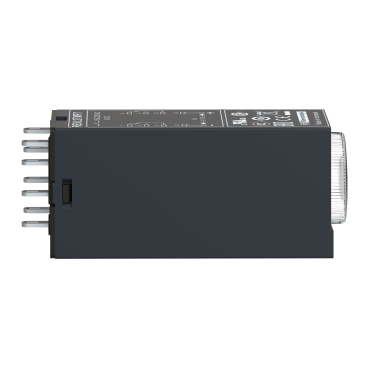

Modular timing relay, 5 A, 2 CO, 0.1 s..100 h, on-Delay, 230 V AC
Mfr. Part No.:
REXL2TMP7
APT Stock No.:
SE-REXL2TMP7
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 762.79
(Exc. VAT)
GHS 929.84
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
Wide range of time delay for adjustment: from 0.01 s to 999 hrs.
Compatible with a wide range of applications including machines, buildings, water segments, and HVAC.
Unprecedented accuracy, predictive maintenance, and superior security.
Flexible choice of screw or spring connection terminals for wiring.
Description
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 21mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Compatible products
Accessories (1)
Specifications
| Main | |
|---|---|
| Range of product | Harmony Timer Relays |
| Fixing mode | Plug-in (socket) |
| Product or component type | Miniature timing relay |
| Discrete output type | Relay |
| Contacts type and composition | 2 C/O |
| Component name | REXL |
| Time delay type | Power on-delay |
| Time delay range | 10...100 h 1...10 min 1...10 h 0.1...1 s 6...60 min 6...60 s 1...10 s |
| Width | 21 mm |
| Complementary | |
|---|---|
| Contacts material | Cadmium free |
| [Us] rated supply voltage | 230 V AC 50/60 Hz |
| Voltage range | 0.85...1.15 Us |
| [In] rated current | 5 A AC |
| Repeat accuracy | +/- 0.5 % |
| Setting accuracy of time delay | 10 % at full scale at 25 °C conforming to IEC 61812-1 |
Dimensions Drawings
Connections and Schema
Technical Description
The timing period T begins on energisation. After timing, the outputs close.
2 Timed C/O Contacts
,
Relay de-energised
Relay energised
Output open
Output closed
R | Relay output |
T | Timing period |
