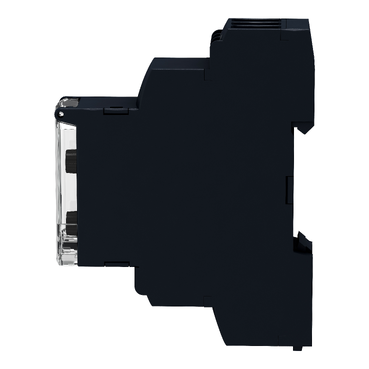

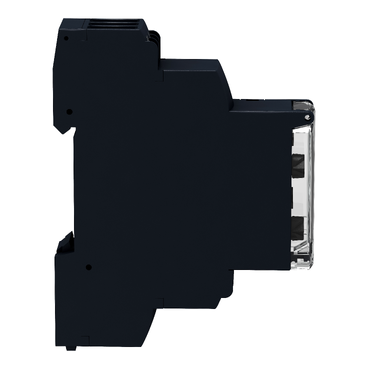

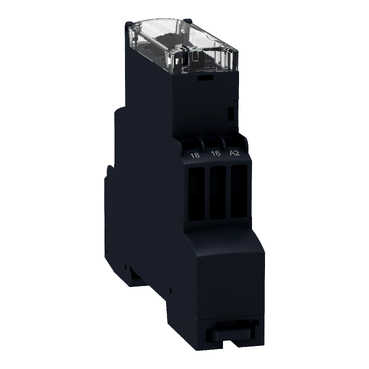

Modular timing relay, 8 A, 1 CO, 1 s..100 h, asymmetrical flashing, 24...240 V AC
Mfr. Part No.:
RE17RLMU
APT Stock No.:
SE-RE17RLMU
Brand:
Schneider Electric
Back Order
Need more stock?
Contact us for Est. Lead TimeSubtotal (1 unit)**
GHS 506.77
(Exc. VAT)
GHS 617.75
(Inc. VAT)
Available For Order
* Delivery dates may change based on your quantity and address.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
Wide range of time delay for adjustment: from 0.01 s to 999 hrs.
Compatible with a wide range of applications including machines, buildings, water segments, and HVAC.
Unprecedented accuracy, predictive maintenance, and superior security.
Flexible choice of screw or spring connection terminals for wiring.
Description
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24V DC, 24V to 240V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
Shipping & Policy
Payment Methods:
Shipping Cost:
Contact the supplier about freight and estimated delivery time.
Secure payments:
Every payment you make on aptghana.com is protected by the platform.
Return policy
Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.
Specifications
| Main | |
|---|---|
| Range of product | Harmony Timer Relays |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Width | 17.5 mm |
| Device short name | RE17R |
| Time delay type | Asymmetrical flashing |
| Time delay range | 1...10 h 1...10 s 0.1...1 s 6...60 min 1...10 min 10...100 h 6...60 s |
| Nominal output current | 8 A |
| Complementary | |
|---|---|
| Contacts type and composition | 1 C/O |
| Contacts material | Cadmium free |
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz 24 V DC |
Dimensions Drawings
Connections and Schema
,
1 Link A1-Y1 for function L only
Technical Description
Repetitive cycle comprises of two, independently adjustable timing periods Ta and Tr. Each timing period corresponds to a different state of the output R.
,
Repetitive cycle comprises of two, independently adjustable timing periods Ta and Tr. Each timing period corresponds to a different state of the output R.
,
Relay de-energised
Relay energised
Output open
Output closed
C | Control contact |
G | Gate |
R | Relay or solid state output |
R1/R2 | 2 timed outputs |
R2 inst. | The second output is instantaneous if the right position is selected |
T | Timing period |
Ta - | Adjustable On-delay |
Tr - | Adjustable Off-delay |
U | Supply |
