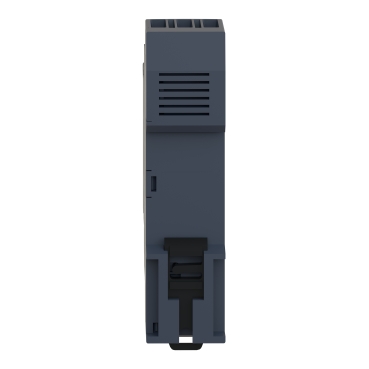

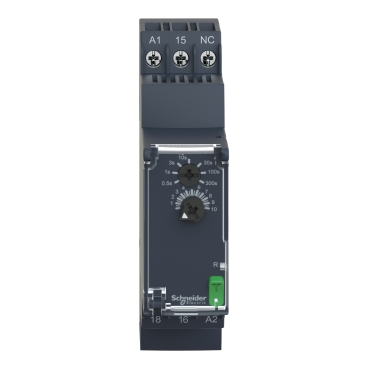

Name: RE22R1QCMU - Star Delta Timer-0.05s-300s- 24-240VAC/DC- 1CO | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-RE22R1QCMU
Price: 604.95 GHS
Availability: InStock
Rating: 4.3 (31 reviews)

View allHarmony Timer Relays

Star Delta Timer-0.05s-300s- 24-240VAC/DC- 1CO

Mfr. Part No.:

RE22R1QCMU

APT Stock No.:

SE-RE22R1QCMU

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 604.95

(Exc. VAT)

GHS 725.94

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time

Wide range of time delay for adjustment: from 0.01 s to 999 hrs.

Compatible with a wide range of applications including machines, buildings, water segments, and HVAC.

Unprecedented accuracy, predictive maintenance, and superior security.

Flexible choice of screw or spring connection terminals for wiring.

Description

"This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC."

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Specifications

Main
Range of product	Harmony Timer Relays
Discrete output type	Relay
Product or component type	Modular timing relay
Device short name	RE22
Nominal output current	8 A

Complementary
Contacts type and composition	1 C/O timed contact, cadmium free
Time delay type	Star-delta
Time delay range	10...100 s 3...30 s 0.1...1 s 0.3...3 s 0.05...0.5 s 1...10 s 30...300 s
Control type	Rotary knob Diagnostic button
[Us] rated supply voltage	24 V DC 24...240 V AC 50/60 Hz
Release input voltage	<= 2.4 V

Dimensions Drawings

Dimensions

Connections and Schema

Wiring Diagram

Technical Description

Function Qc: Star-Delta Relay (1 CO)

Description

On energisation of power supply, the output R initializes at its initial state such that energizes STAR CONTACTOR + MAIN CONTACTOR and the timing T starts (STAR connection time duration starts).At the end of the timing period T, the output R closes such that deenergizes STAR CONTACTOR and deenergizes the power supply causes t transition time starts.At the end of the transition time, the output R reverts to its initial state such that energizes DELTA CONTACTOR.

Function: 1 Output
