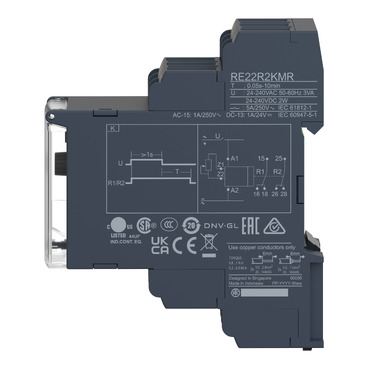

Name: RE22R2KMR - True off delay- 5A- 2CO -0.05s-10min- 24-240VAC/DC | SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: SE-RE22R2KMR
Price: 1129.65 GHS
Availability: InStock
Rating: 4.3 (49 reviews)

View allHarmony Timer Relays

True off delay- 5A- 2CO -0.05s-10min- 24-240VAC/DC

Mfr. Part No.:

RE22R2KMR

APT Stock No.:

SE-RE22R2KMR

Brand:

SCHNEIDER ELECTRIC

In Stock: available

Need additional quantities?

Subtotal (1 unit)**

GHS 1,129.65

(Exc. VAT)

GHS 1,355.58

(Inc. VAT)

Quantity

Available For Order

* Delivery dates may change based on your quantity and address.

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time

Wide range of time delay for adjustment: from 0.01 s to 999 hrs.

Compatible with a wide range of applications including machines, buildings, water segments, and HVAC.

Unprecedented accuracy, predictive maintenance, and superior security.

Flexible choice of screw or spring connection terminals for wiring.

Description

This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours. It provides function K and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Selectable timing range offers a one stop solution for your power management system. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.

Documents

Shipping & Policy

Payment Methods:

Shipping Cost:

Contact the supplier about freight and estimated delivery time.

Secure payments:

Every payment you make on aptghana.com is protected by the platform.

Return policy

Enjoy peace of mind with our 7-day return policy for used items, provided they are returned in their original packaging.

Specifications

Main
Range of product	Harmony Timer Relays
Discrete output type	Relay
Product or component type	Modular timing relay
Device short name	RE22
Nominal output current	5 A

Complementary
Contacts type and composition	2 C/O timed contact, cadmium free
Time delay type	Delay on de-energization
Time delay range	10...100 s 0.05...1 s 30...300 s 3...30 s 1...10 min 1...10 s 0.3...3 s
Control type	Rotary knob Potentiometer external
[Us] rated supply voltage	24...240 V AC/DC 50/60 Hz
Release input voltage	<= 2.4 V

Dimensions Drawings

Dimensions

Connections and Schema

Wiring Diagram

Technical Description

Function K: Delay On De-energization without Auxillary Supply

Description

On energisation of power supply, the output(s) R close(s).On de-energisation of power supply, timing period T starts and at the end of this period, the output(s) R revert(s) to its/their initial state.The energization of power supply > Tk is necessary to sustain the timing period T.

Function: 1 Output
